Genelec G Five Aktiv Høyttaler 8in 150W RCA og XLR

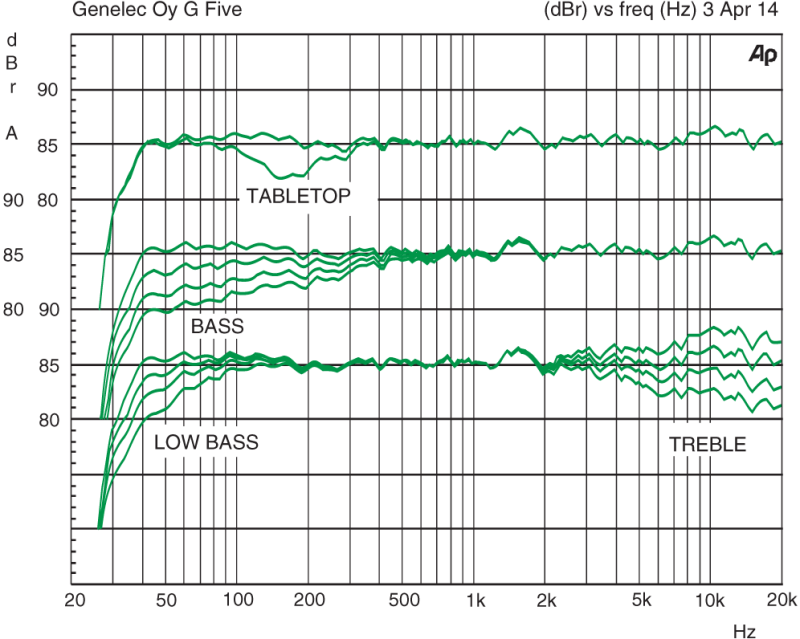

Frequency Response

38 Hz - 20 kHz (± 2.5 dB)

Low cutoff -6dB
32 Hz

High cutoff -6dB
25 kHz

SPL

Short term max SPL

≥110 dB

Maximum short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz.

Long term max SPL
≥101 dB

Maximum long term RMS acoustic output in same conditions with IEC weighted noise (limited by driver unit protection circuit) at 1 m.

Self-generated noise

Self-generated noise
≤10 dB

Self generated noise level in free field at 1 m on axis (A-weighted).

Weight

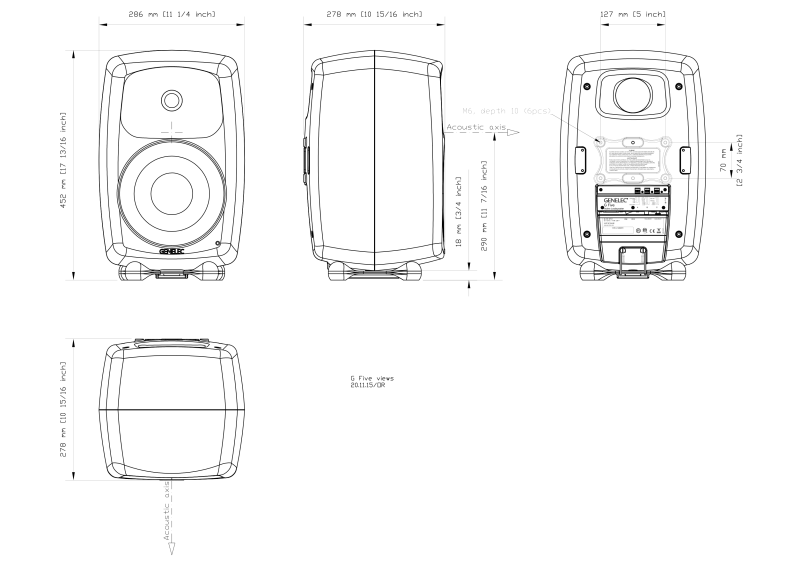

Dimensions

Height
433 mm (17 1/16 in)

Height with Iso-Pod
452 mm (17 25/32 in)

Width
286 mm (11 1/4 in)

Depth
278 mm (10 15/16 in)

Enclosure

Enclosure material
Die cast aluminium

Drivers

Driver type
Cone

Diameter
205 mm (8 1/16 in)

Driver type
Metal dome

Diameter
25 mm (31/32 in)

Mains voltage

100, 120, 220 or 230VAC 50/60Hz according to region

Power consumption

ISS Active
≤0.5 W

Connectors

Input

RCA female, 10 kOhm.

Input Analog signal input connector XLR female, 10 kOhm.

Crossover

Bass/Treble
1800 Hz
